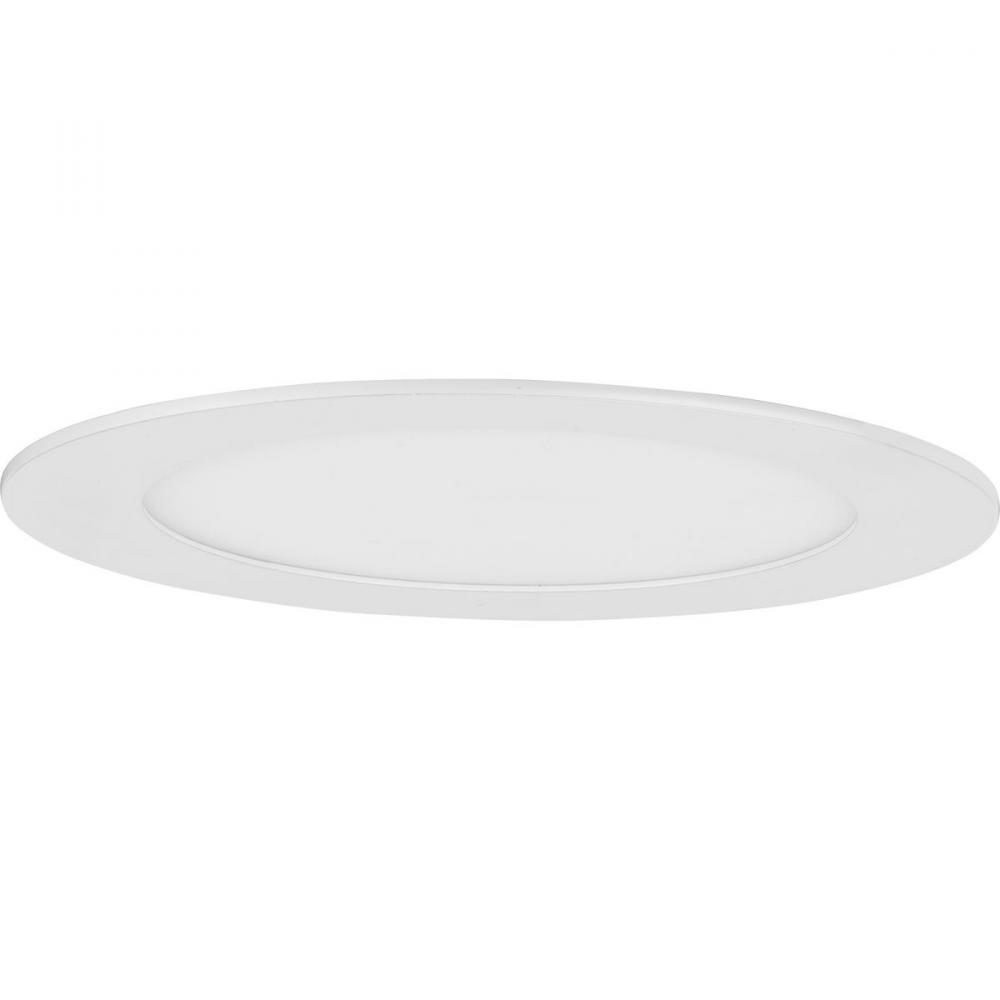

P807003-028-30 6IN EDGELIT LED TRIM JBOX (P807003-028-30)
by Progress
With a slim profile and the latest LED technology, the 6-inch Everlume Recessed Downlight offers smooth, even 3000K illumination to homes and commercial spaces. Its edge-lit surface delivers low glare, 12W, 925 lumen light without dark spots from its polycarbonate lens and is dimmable using ELV or TRIAC dimmers. Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings. An attached J-Box provided with quick connects, eliminates the need for an additional recessed housing. Additionally, spring clips ensure a secure flush mount to the ceiling surface. Easily install into 6-inch openings in new construction and remodel ceiling applications. This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
Product Specification
Item #
P807003-028-30
Dimensions
Height: 1.00"
Width: 7.17"
Length: 7.17"
Additional product details
Vendor Item #
P807003-028-30
Internal #
GLPTR
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24
, Wet Rated
, Prop 65
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Wattage
12w
Category
Recessed
Finish
Satin White
Style
Utilitarian
Option
Prop 65
, Title 24
, Wet Rated
Family
Everlume
Voltage
120 VAC
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
LED
Kelvin
3000
Keyword(s)
Bathroom, Bedroom, Bonus Room, Garage, Great Room, Kitchen, Laundry, Living Room, Sitting Room, Utility
Length
7.17 in
Lumens / Light Output
925 lm
Material
Aluminum, Steel
Ship Carton Height
7.72
Ship Carton Length
7.4
Ship Carton Width
2.64
Ship Weight
0.99
Warranty
5 Years Limited Warranty
Weight
1.21
Americans with Disabilities Act
Yes
Base Type
Integrated
Bulb CRI
90
Bulb Included
Yes
Bulb Wattage
12 W
Can be Mounted Up or Down
No
Color
White
Convertible Fixture Includes Both Mounts
No
Country of Origin
CN
Dark Sky
No
Dimming
ELV/Reverse Phase;Triac/Forward Phase
Dimming Range
Dims to 10% Brightness
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Frequency Rating
60 Hz
Lamp Type Basic
Solid State
Lumens per Watt
77
Mount Location
Ceiling Flush/Recessed
Post Top Fits Standard
No
Prop 65
Yes
Quick Link Connector
No
Safety Rating
cETLus Approved
Starting Temperature Minimum
-25 °C
Title 24
Yes
Wet Rated
Yes
Manufactured By
Progress
Other Details:
- An attached J-Box provided with quick connects, eliminates the need for an additional recessed housing.
- Edge-lit surface delivers glare-free illumination to low clearance, new construction and remodel, ceiling applications residential and commercial settings
- Everlume easily mounts to ceilings in indoor rooms including bathrooms, bedrooms, bonus rooms, garages and sitting rooms and outdoor settings like porches and patios
- Includes installation instructions and mounting hardware for a quick, easy installation
- Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings
- Its edge-lit surface delivers low glare, 12W, 925 lumen, 3000K light without dark spots from a polycarbonate lens and is dimmable using ELV or TRIAC dimmers
- Measures 7.165 in. Dia x 1.815 in. H
- The trim features a gasket to close off the ceiling opening and spring clips ensure a secure flush mount to the ceiling surface.
- This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
- Warranty: Our 5-Year Limited Warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
Included Items
Bulbs: (1) x 12 Watt LED Solid State
Call for Price
BASE PRICE:
$
34
91
/
/ 1
($34.91 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Please contact showroom to confirm availability. Non-stock item may require restocking fee.
